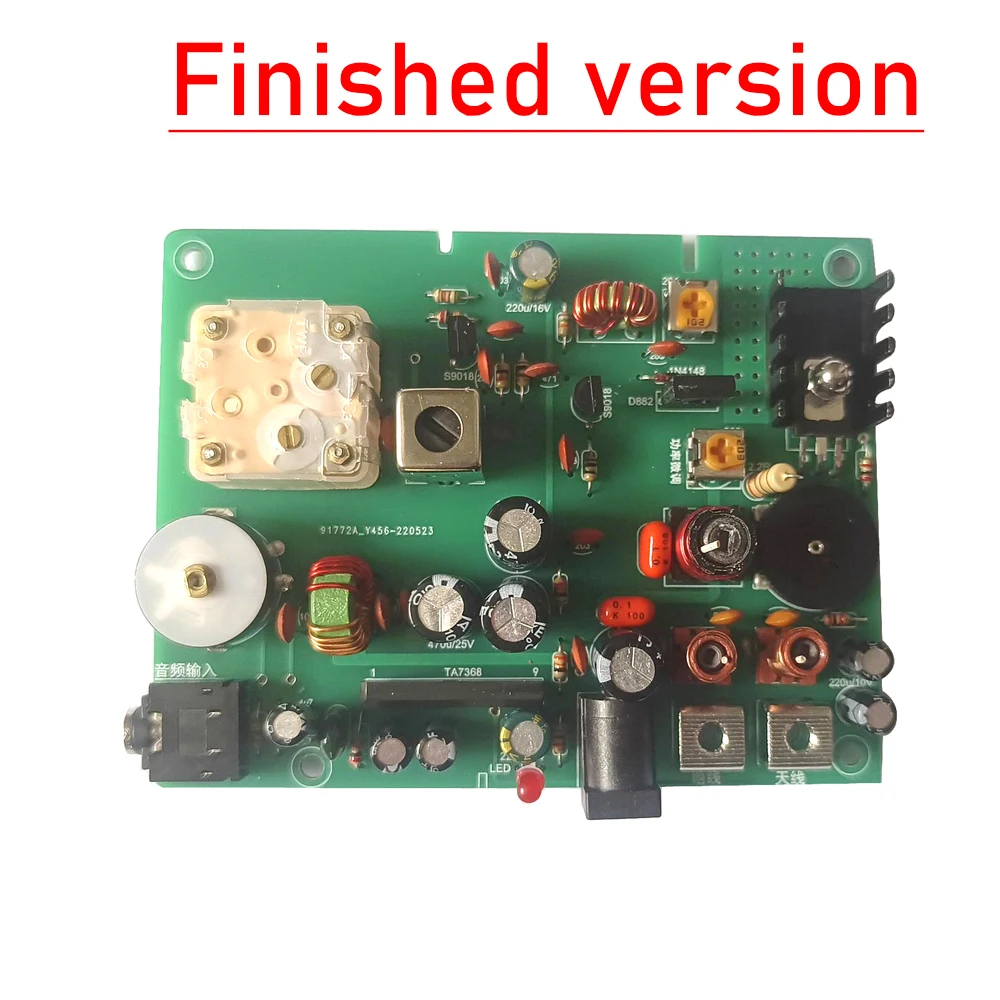

Product Overview: Discover the fascinating world of radio technology with our experimental Micropower Medium Wave Transmitter, specifically designed for educational purposes and perfect for school training kits. This AM transmitter operates across a frequency range of 530 to 1600 kHz, allowing students to delve into the principles of radio frequency transmission and gain hands-on experience in the field of signal communication.
Learning Objectives:
- High Frequency Signal Oscillation: Students will learn the fundamental principles of how high-frequency signals oscillate within the context of an AM transmitter.
- Signal Amplification: Gain insights into the amplification processes involved in transmitting AM signals, helping to deepen understanding of radio wave mechanics.
- Modulation Techniques: Explore the essential modulation principles that are integral to effective AM transmission, highlighting the nuances of audio signal broadcasting.
🪶 Technical Specifications:
- Operating Voltage: 5V - 6V
- Current Requirement: 60mA
- Power Consumption: 0.3W
- External Antenna Options: Use a 6m antenna (1/50 wavelength) or a 75m antenna (1/4 wavelength) for optimal signal reception (antenna not included).
📎 Sound Quality and Reception:
- Experience clear sound quality when situated 1 meter away from the antenna, with minimal susceptibility to interference.
- Directional reception can be achieved at distances between 2 to 6 meters from the antenna, though some interference from household appliances may occur.
- Tests indicate that signals can be effectively received over distances exceeding 6 meters, providing assurance that the transmitter performs reliably in various environments.
- This transmitter delivers a signal strength that is over 3 times greater than signals produced by standard student signal generators, ensuring a robust learning experience.
🔍 With this experimental AM transmitter kit, students can gain an invaluable understanding of radio transmission technology, enhancing their practical skills and theoretical knowledge in this exciting field.
