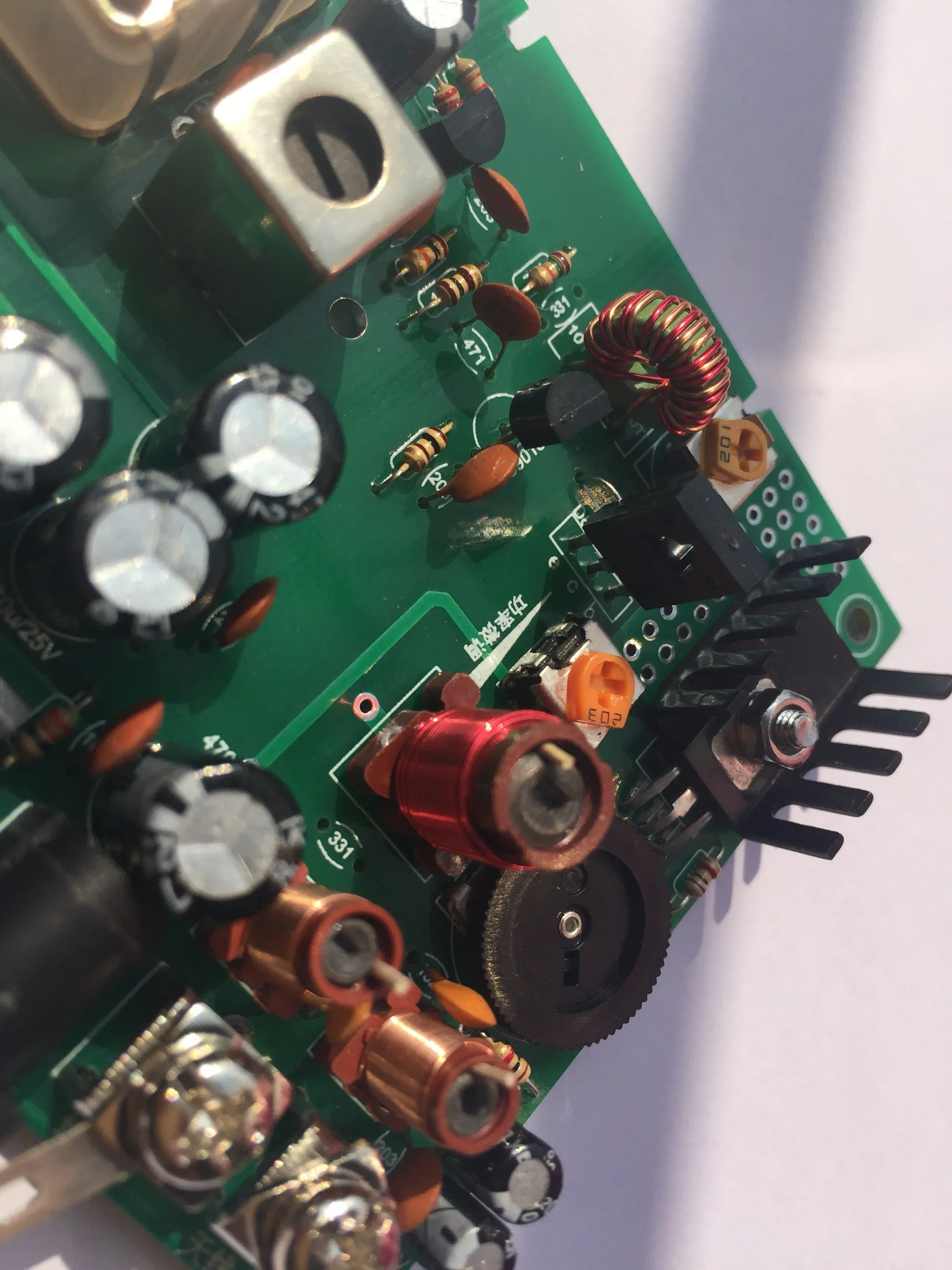

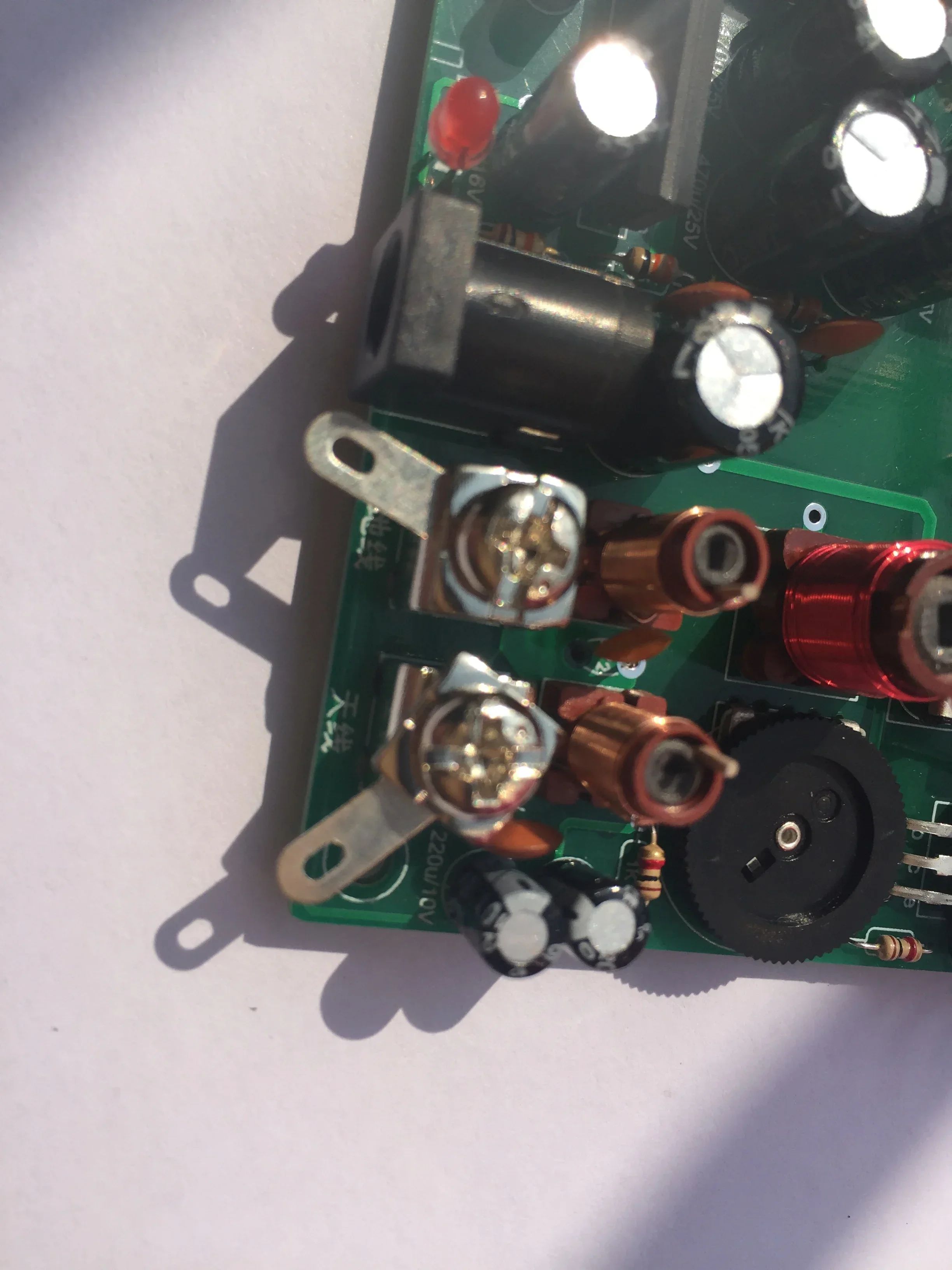

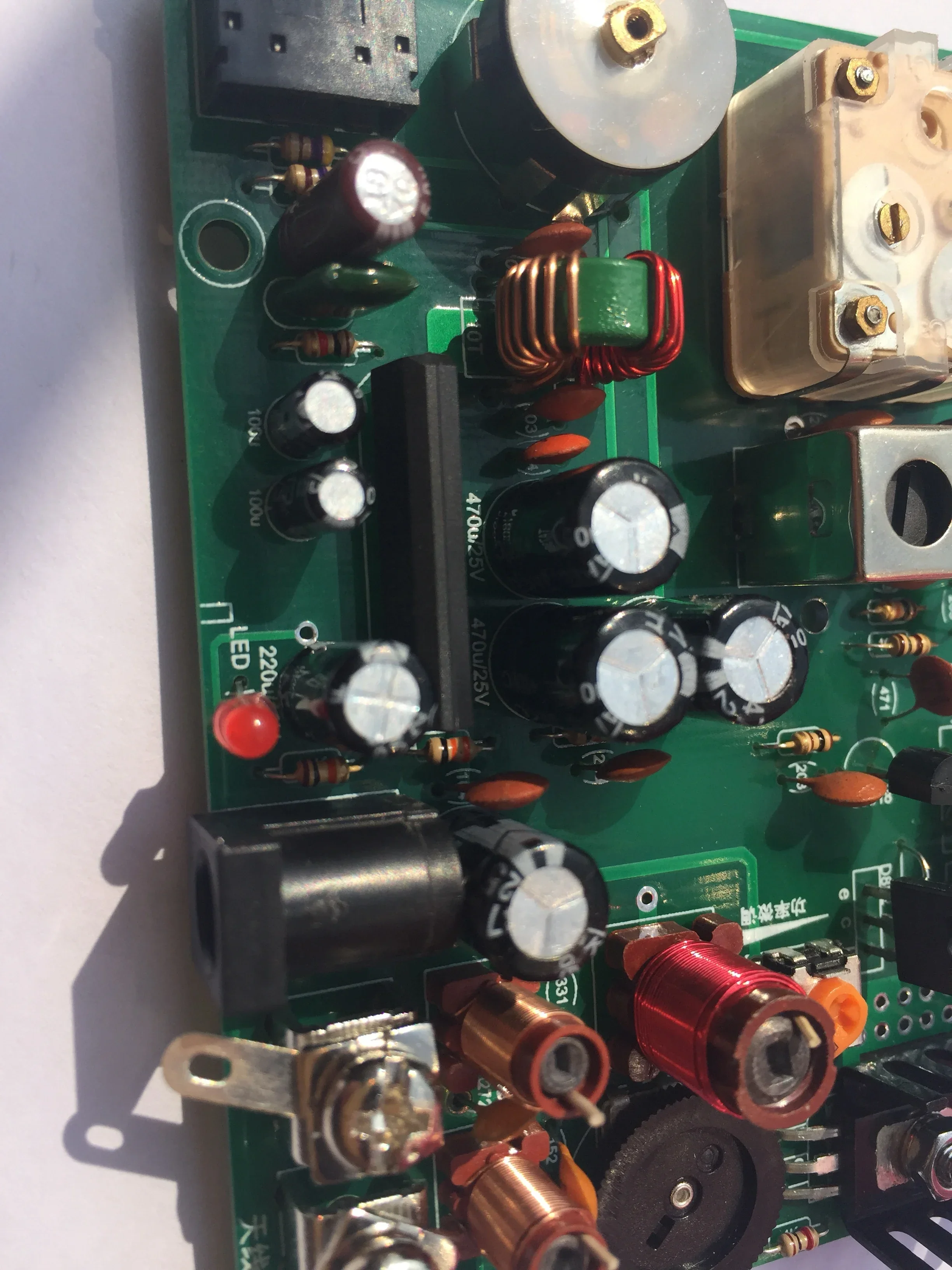

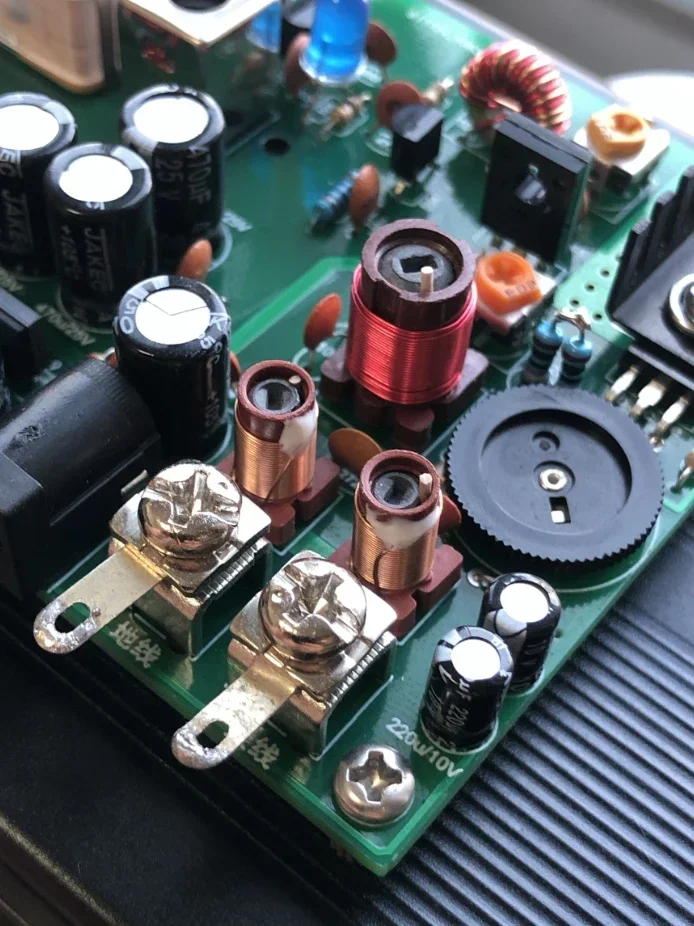

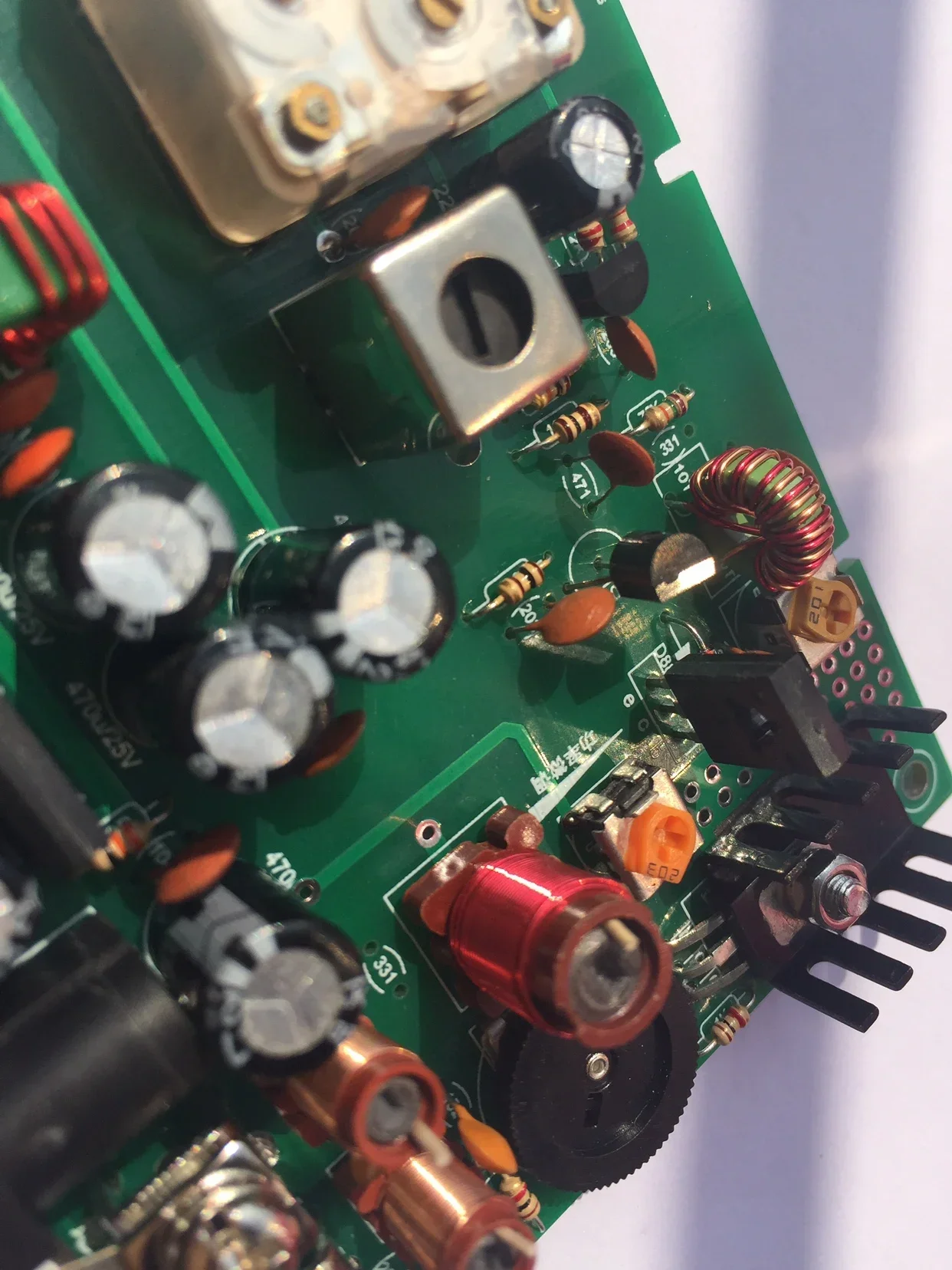

📶 Introducing the Radio Experimental Medium Wave Transmitter: Your gateway into the world of AM transmission! This specialized motherboard is designed exclusively for medium wave wireless enthusiasts eager to explore the nuances and capabilities of radio technology.
🔧 Key Features:
- Ideal for Testing: This transmitter excels at evaluating the performance of various radio ore, allowing users to experience real-time effects and improvements.
- Included Components: The package comes with essential spare parts, including all necessary components for the main board, an audio cable for seamless connectivity, and a set of frequency points ready for debugging.
- Ready to Use: The finished board is power-on ready and includes a packet audio cable for instant sound transmission.
🏆 Electrical Specifications:
- Power Supply: Operates on a 9V 2A direct input via a 5.5mm interface, requiring an internally positive and externally negative power source (not included).
- Emission Frequency Range: 530 ~ 1600 KHz, tailored for the medium wave radio band.
- Transmission Power: Adjustable power output ranging from 20 milliwatts to 500 milliwatts, allowing for regulated performance up to 5 ~ 10 meters.
- Antenna: Constructed from 5 meters of 1.5 ~ 2.5 mm copper wire for optimal transmission quality.
- Audio Input: Features dual 3.5mm input connections for easy integration with various audio sources.
- Compatible Sound Sources: Can be linked to a wide range of devices including CD players, desktop computers, and mobile phones for versatile audio input options.
📶 Educational Value: This transmitter is an excellent tool for medium wave radio enthusiasts and students alike. It serves as a hands-on learning platform to study wireless signal generation and the principles of audio modulation in AM transmitters.
⚡ Compliance Notice: Users are encouraged to adhere to local radio regulations during operation and testing of the transmitter. It's important to adjust the amplitude knob to minimize power output as needed.
