📦 The NEEBRC 2322 2600KV Outrunner Motor package includes a top-tier AM32 45A ESC and a compact 21g Servo, designed specifically for enhancing the performance of 1/12 scale RC vehicles such as the MN99S and MN82 models. This upgrade set is engineered to deliver unparalleled power and efficiency, making it an essential choice for hobbyists looking to optimize their RC car crawler experience.
🔧 Key Features:
- Compatibility: This assembly is tailored for use with various vehicle models including MN82, MN99S, MN168, and MN78, ensuring a seamless integration without any complex modifications.
- Precision Fit: The motor and servo are designed to perfectly fit with both metal and original gearboxes, featuring a 14X14mm aperture, eliminating the need for expansion or additional adjustments during installation.
- Compact and Powerful: Despite its smaller size, the NEEBRC 2322 motor packs a punch, providing robust power to your vehicle while maintaining a minimal footprint.
- Easy Installation: Users will appreciate the straightforward setup; there’s no need to alter the bottom shell or car shell, allowing for hassle-free upgrading.
- Improved Performance: After modification, you’ll experience superior low-speed torque compensation, enhanced linearity, and a significant improvement in climbing capability, making it easier to tackle challenging terrains.
🔩 Specifications:

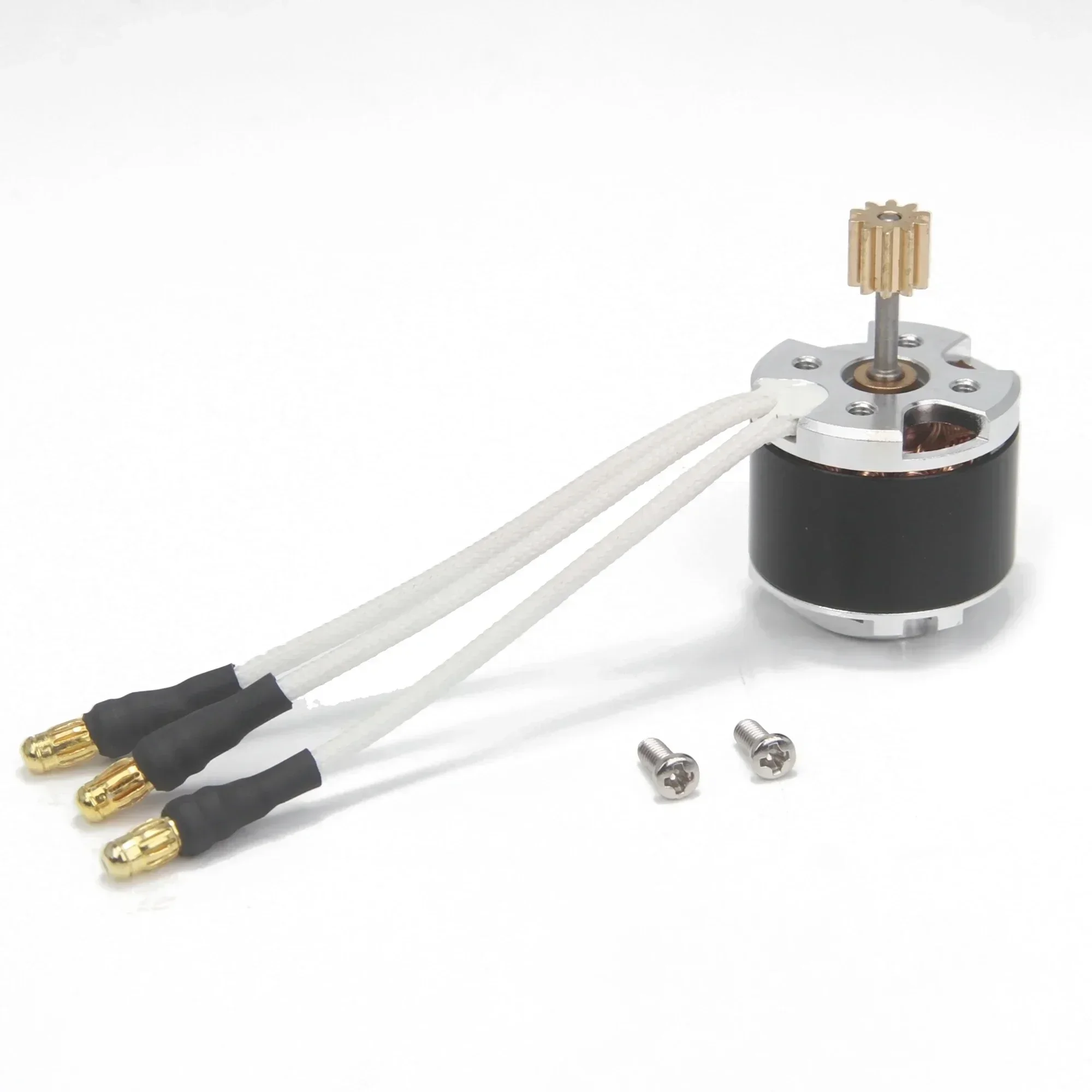

- Motor Model: 2322 2600KV Outrunner
- Voltage Range: 5.5-9V
- Rated Voltage: 7.2[VDC]
- No-load Current: Up to 1200[mA]
- No-load Speed: Approximately 19000±10%[rpm]
- Load Torque: 100[gf.cm]
- Load Speed: 17000±10%[rpm]
- Direction: CCW/CW (from output shaft end)
- Insulation Grade: Class B
- Axial Play: Maximum of 0.3[mm]

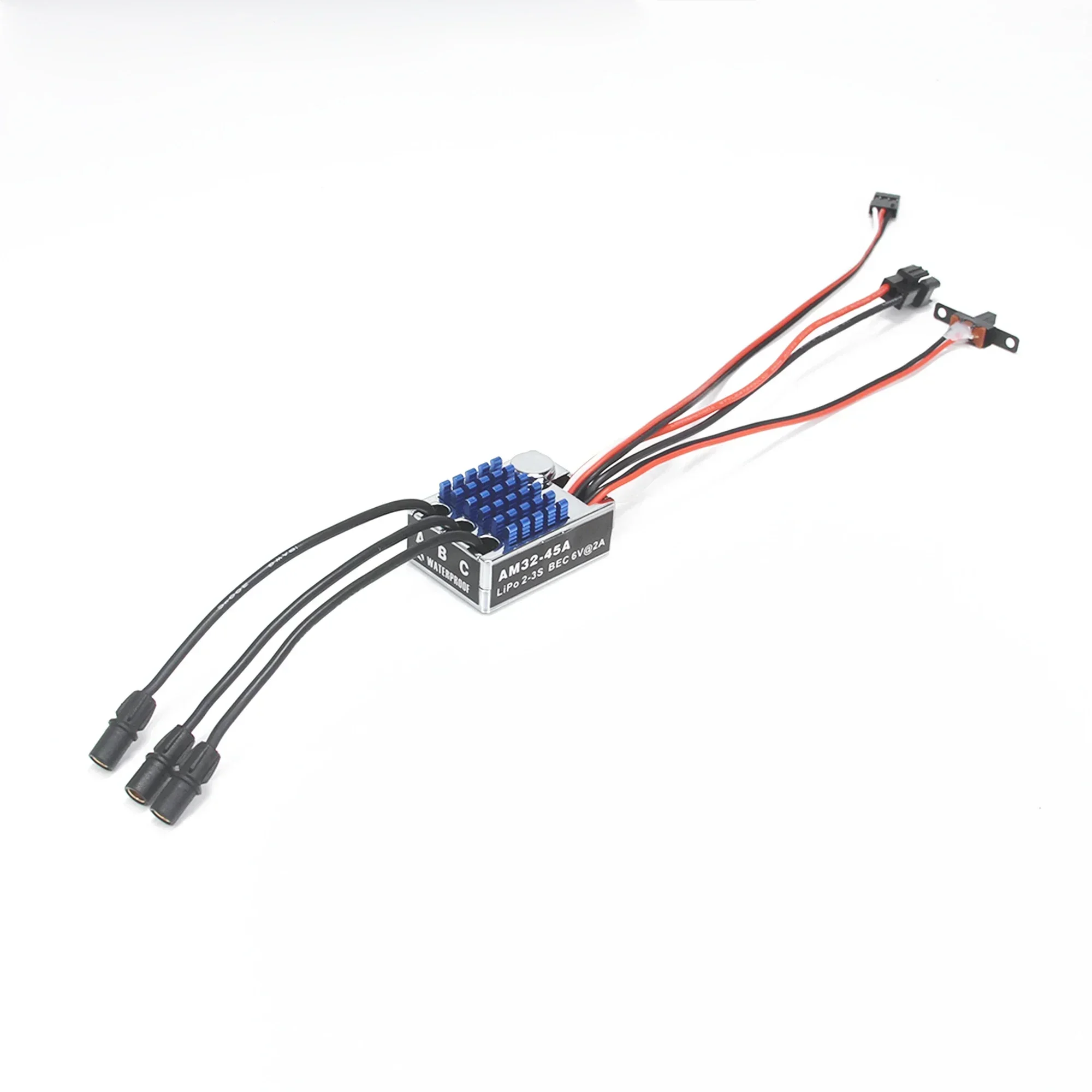

ESC Model: AM32
- Voltage Range: 7.4-11.1V
- Continuous Current: 45A
- Start-up: Sine start technology for smoother operation
- Low-speed Torque Compensation: Included for enhanced performance
- Size: 38.5*28*18.5mm

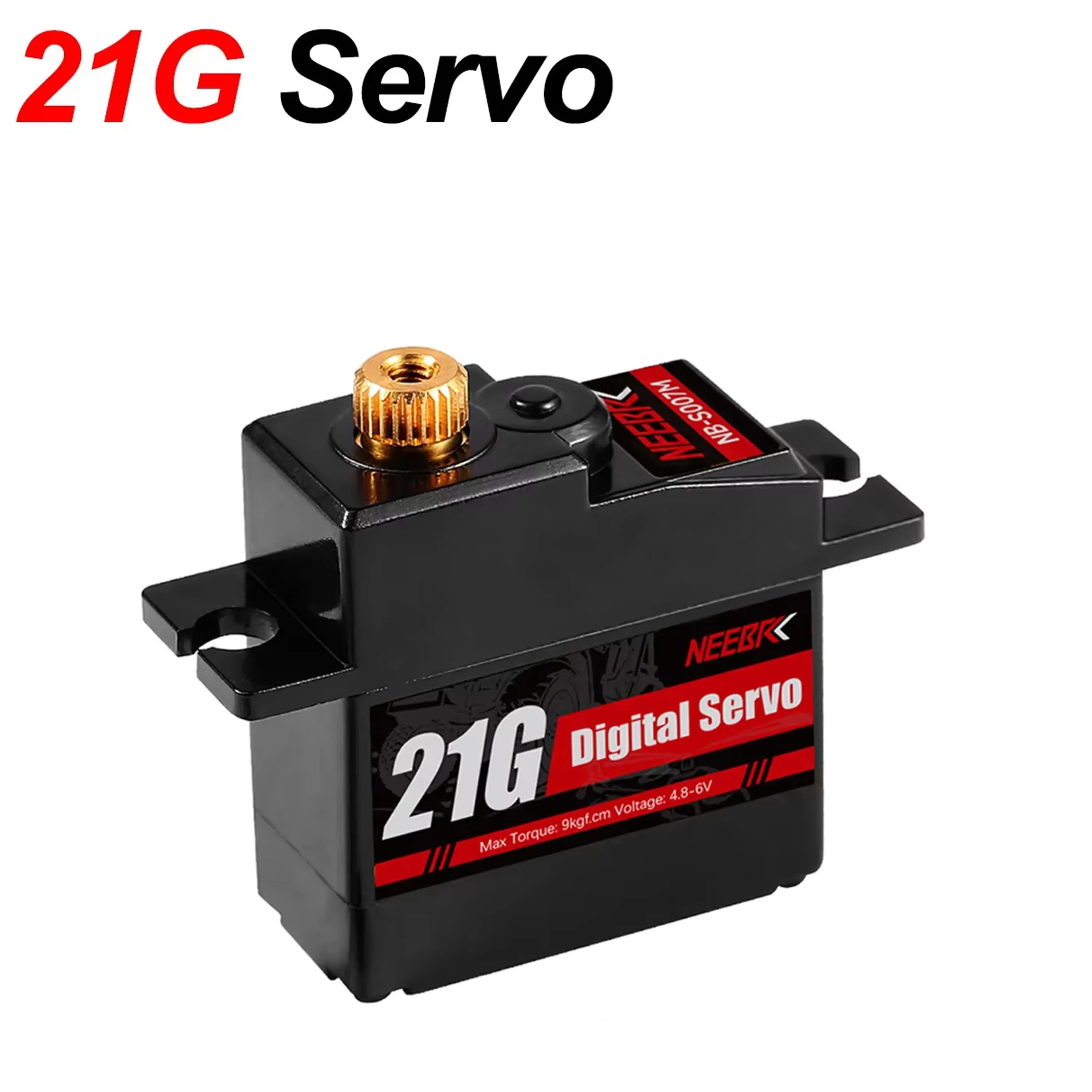

🧈 Servo Specifications:
- Model: NEEBRC NB-S007M
- Operating Voltage: 4.8~6.0V DC
- Max Torque: 9kgf·cm
- No Load Speed: ≤0.10sec/60° at 4.8V; ≤0.12sec/60° at 6.0V
- Stall Current: 1500mA @ 4.8V; 1800mA @ 6.0V
- Consumption Current (No Load): 200mA @ 4.8V; 210mA @ 6.0V
- Max Operating Travel Angle: 180°±10° (1000~2000μs)
- Dead Band Width: ≤ 1us
- Mechanical Limit Angle: 360°
- Communication Interface: PWM
- Motor Type: Core motor
- Case Material: Durable ABS
- Gear Set Material: Metal gears for enhanced durability
- Weight: 20.7 g
- Size: 29.6 × 13.2 × 40mm
- Connector Cable Length: JR 250±5mm (exposed without plug)
🔩 With the NEEBRC 2322 2600KV Outrunner Motor, AM32 ESC, and 21g Servo, you are not just upgrading your model; you are unlocking a new level of performance and capability in your RC adventures. Experience the difference today!
