Durable IP67 Magnetic Grids Steel Tape with High Precision Scales (1m)

🧲 IP67 Magnetic Grids Steel Tape - Model: 5+5 5U 0.005MM

🛠️ Introducing our state-of-the-art IP67 Magnetic Grids Steel Tape, designed for high-performance applications in demanding environments. Engineered with precision, this magnetic scale is the ideal solution for long-distance measurements, ensuring accuracy and reliability even under harsh conditions.

🧲 Magnetic Scale Overview

🧲 This innovative sensor operates based on the principle of magnetic poles. The base of the device is constructed from a high-quality steel strip that is evenly magnetized, with north (N) and south (S) poles distributed at regular intervals. The reading heads detect changes in these magnetic poles, enabling it to perform efficient and accurate measurements. This system proves particularly effective in applications involving oil pollution, cutting chips, vibrations, and other challenging environments where traditional measurement tools might falter.

Technical Specifications

• Material: High-performance magnetic strip
• Width: 10mm ± 0.1mm
• Thickness: 1.3mm ± 0.1mm
• Pole Pitch Standards: 1, 2, 5, 10
• Accuracy Level (at 20℃): ± 0.03mm
• Working Temperature: -5 to +75℃
• Storage Temperature: -5 to +70℃

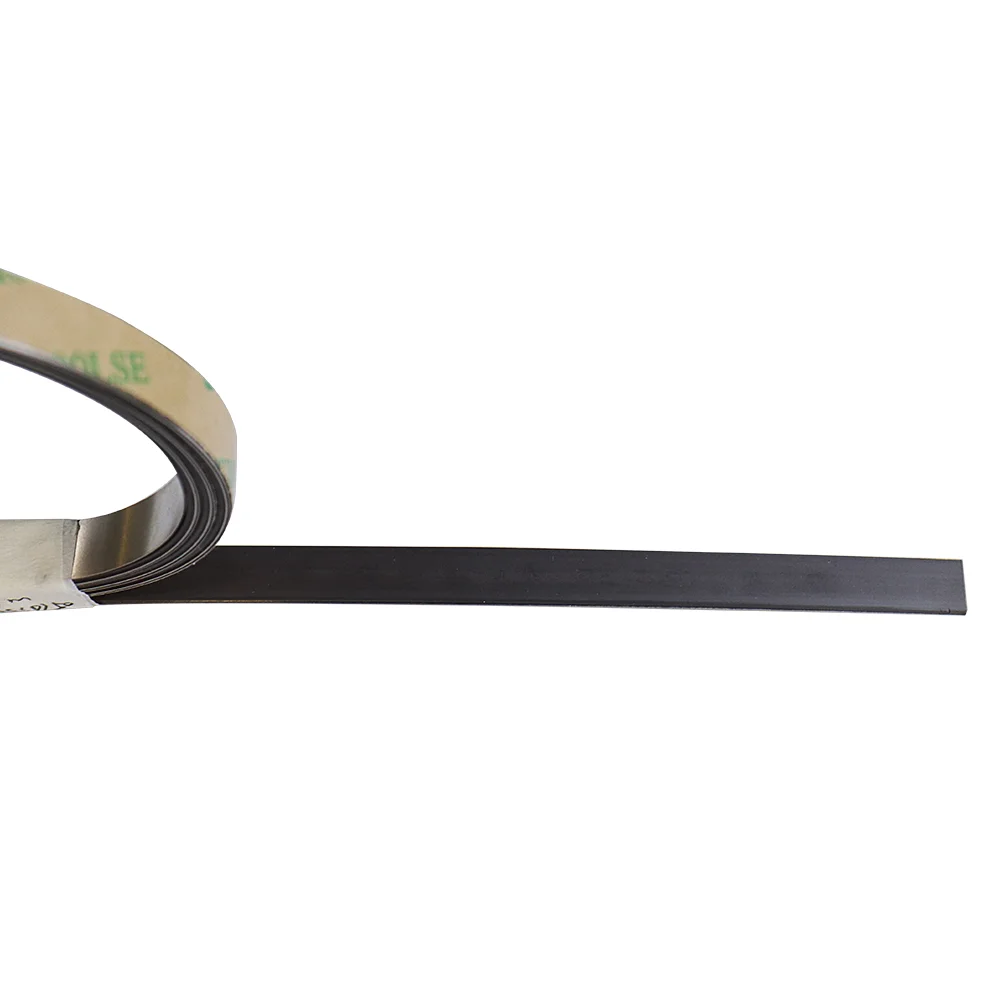

• Cover Material: Stainless steel combined with 3M double-sided adhesive
• Cover Strip Width: 10mm ± 0.1mm
• Cover Strip Thickness: 0.35mm (including double-sided tape)
• Single Volume Length: Standard Volume of 50m
• Protection Rating: IP67

🧲 Key Advantages of Our Magnetic Scale

• Non-contact measurement eliminates issues like backgap, ensuring consistent reliability.
• Magnificently designed to be magnetic and stable, these scales offer a prolonged service life.
• Exceptional resistance to pollution allows for functionality in challenging conditions.
• Installation is straightforward with significantly reduced potential for errors.
• Outstanding performance-to-cost ratio makes this a valuable investment for any measurement application.

🛠️ Elevate your measuring capabilities with our IP67 Magnetic Grids Steel Tape, and experience the difference in precision and durability.
