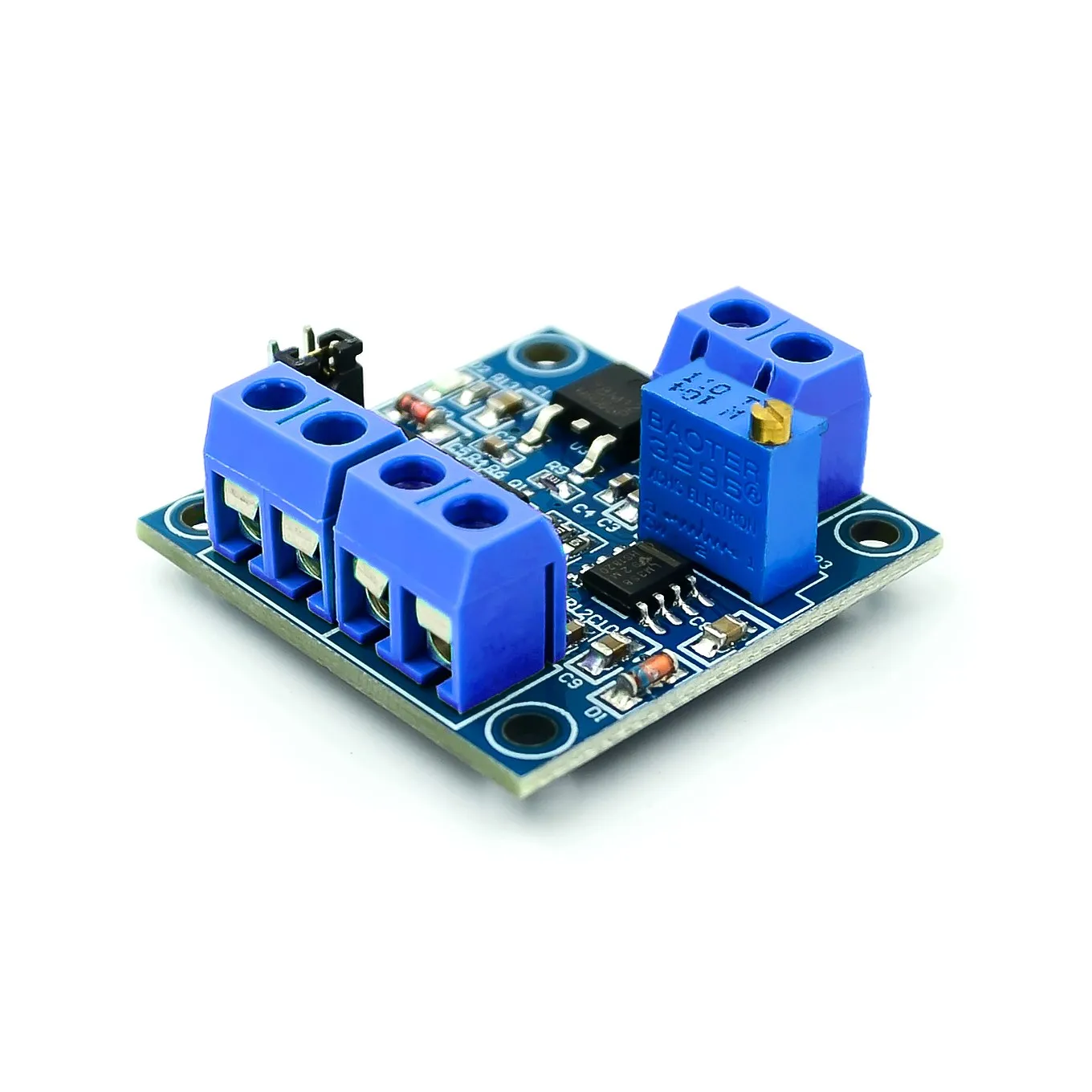

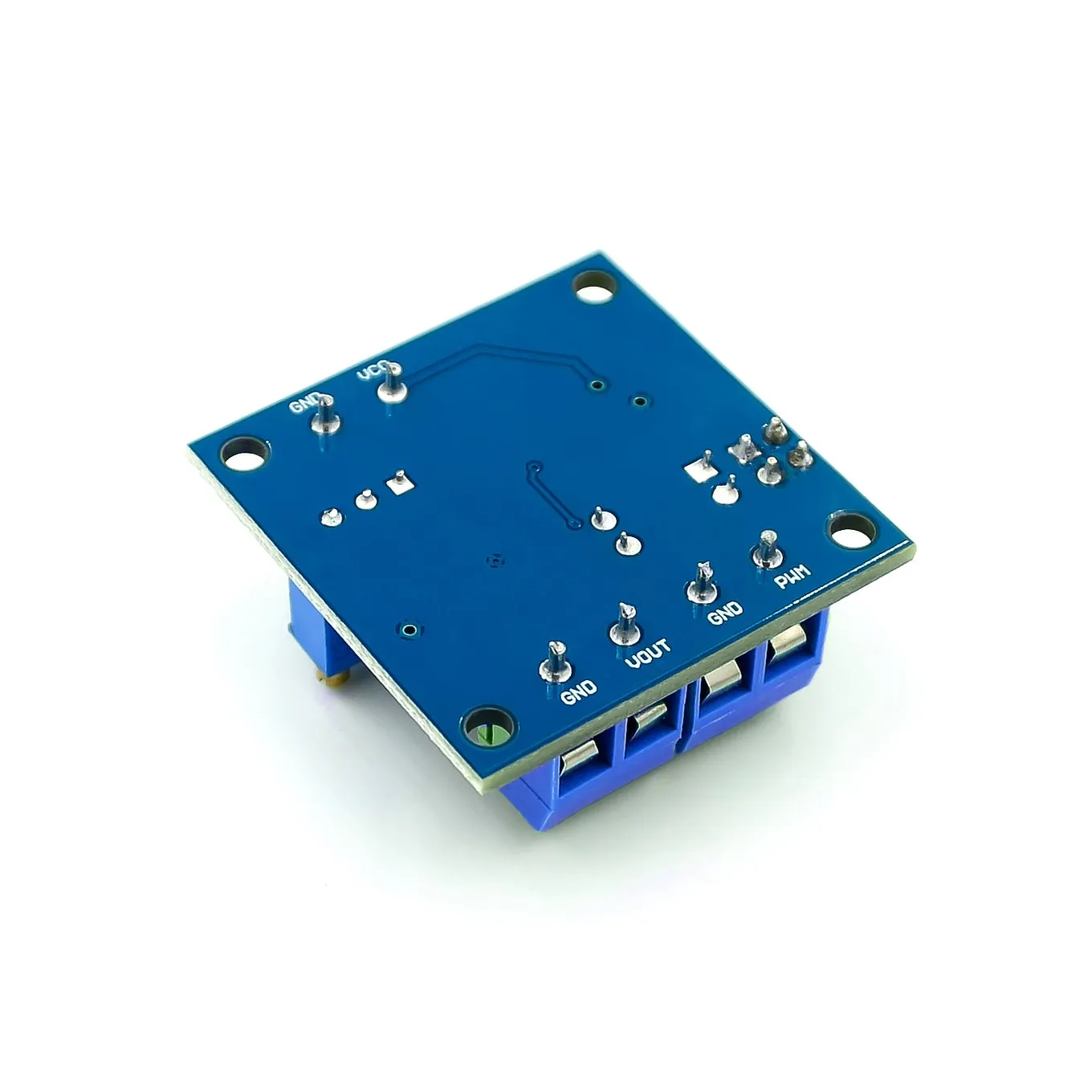

Adjustable PWM to Voltage Converter Module, 0%-100% PWM to 0 - 10V Output (PWM to Voltage)

🪶 Product Overview: The PWM to Voltage Converter Module is an innovative device designed for efficient conversion of Pulse Width Modulation (PWM) signals into a corresponding voltage output. Operating within a voltage range of DC12V to DC30V, this module provides a seamless transition from a PWM signal, ranging from 0% to 100%, to a precise DC voltage output of 0 to 10V. It stands out for its versatile applications across various industrial and hobbyist settings, making it an essential tool for engineers and creators alike.

🔧 Key Features:

• Wide Application Range: Perfect for use in automation, robotics, and control systems.
• User-Friendly Operation: The built-in potentiometer allows for easy fine-tuning of the voltage levels, enabling precise adjustments tailored to specific project needs.
• Compact and Portable: Its small form factor makes the module easy to transport and integrate into diverse setups without occupying significant space.
• Advanced Technology: Incorporates single chip embedded technology, ensuring reliability and enhanced performance in signal processing.
• Simplicity in Design: The straightforward layout makes the module easy to understand and use, making it suitable for both novice and experienced users.

📦 Technical Specifications:

• Utilizes single chip embedded technology for efficient functionality.
• Input PWM signal frequency range: 1kHz to 3kHz, accommodating a variety of control signals.
• The module supports adjustable input level signals, framed by a jumper setting that allows flexibility between 4.5V and 10V for common industrial control cards, and 12V to 24V levels aimed at conventional PLC interface systems.
• Guarantees a conversion accuracy with an allowable error margin of 5%, ensuring reliable voltage output for precision applications.

🛠️ What’s Included:

1 x PWM to Voltage Converter Module

🛠️ This module is an indispensable asset for projects requiring reliable voltage conversion from PWM signals, supporting a variety of industrial and hobbyist applications with ease and precision.
