Advanced 2 - Inch FPV Racing Drone Frame Kit with Brushless Motor Support (3inch)

APEX 2 Frame Kit for 2-Inch RC Drone FPV Racing Quadcopter

⚡ Introducing the APEX 2 Frame Kit, a top-tier solution designed specifically for 2-inch RC drone enthusiasts, particularly those engaged in FPV racing. This expertly crafted frame provides exceptional support for a variety of high-performance components, including the Caddx Polar and Nebula Nano cameras, as well as a range of brushless motors including 1103, 1104, 1106, 1203, and 1204 models.

Specifications:

• Brand: AlfaRC
• Model: APEX-2
• Wheelbase: 95MM
• Bottom Plate Thickness: 2.5MM
• Upper Plate Thickness: 1.5MM
• Side Plate Thickness: 1.5MM
• Column Height: 22MM
• FPV Camera Width: 14MM

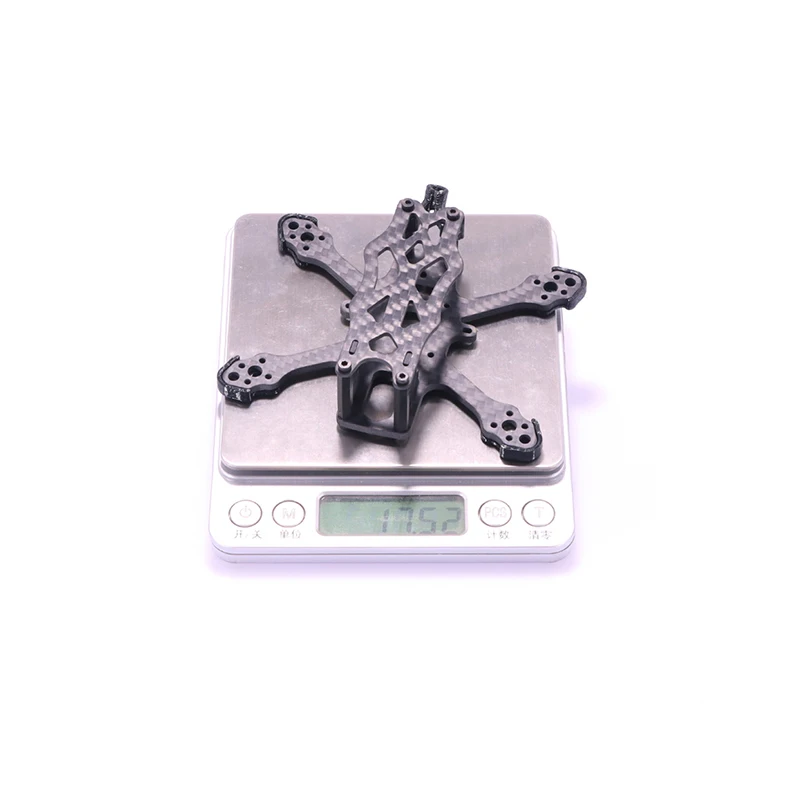

• Weight: 18g (weight may vary slightly between production batches)
• Material: Constructed from durable 3K Carbon Fiber

♻️ Recommended Components:

• Flight Controller: Compatible with F7, F4, F3, or tower systems (mounting hole distances: 20x20, 25.5x25.5, 26.5x26.5)
• Motors: Compatible with 11XX or 12XX brushless motors (mounting hole distance: 9x9mm)
• ESC: Recommended 10-100A brushless ESC
• Propeller: 2-inch propeller
• Battery: 2-6S Lipo battery, recommended capacity between 200-650mAh
• Supported Camera Systems: Compatible with RunCam nano series, FOXEER nano series, CADDX.US nano series, Caddx Polar/Nebula Nano

⚡ Important Notes:
The APEX 2 frame is specifically designed for 2-inch setups; please be aware that the arm design varies from the 2.5-inch and 3-inch frames.

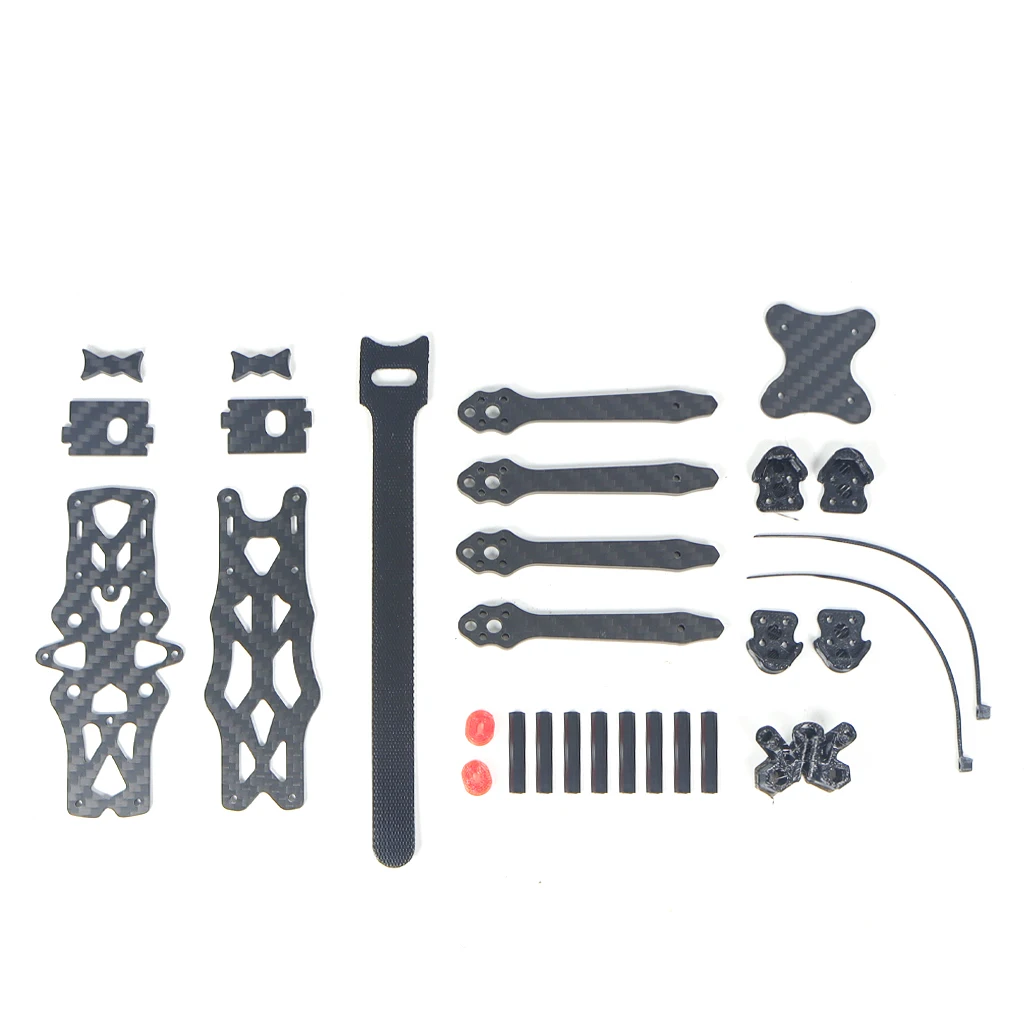

♻️ This frame kit comes as a complete assembly without any electronic components, mounting screws, or tools. Its lightweight and robust carbon fiber construction ensures durability while maintaining optimal performance. Experience the thrill of FPV racing with the APEX 2 Frame Kit, engineered for precision and speed!
